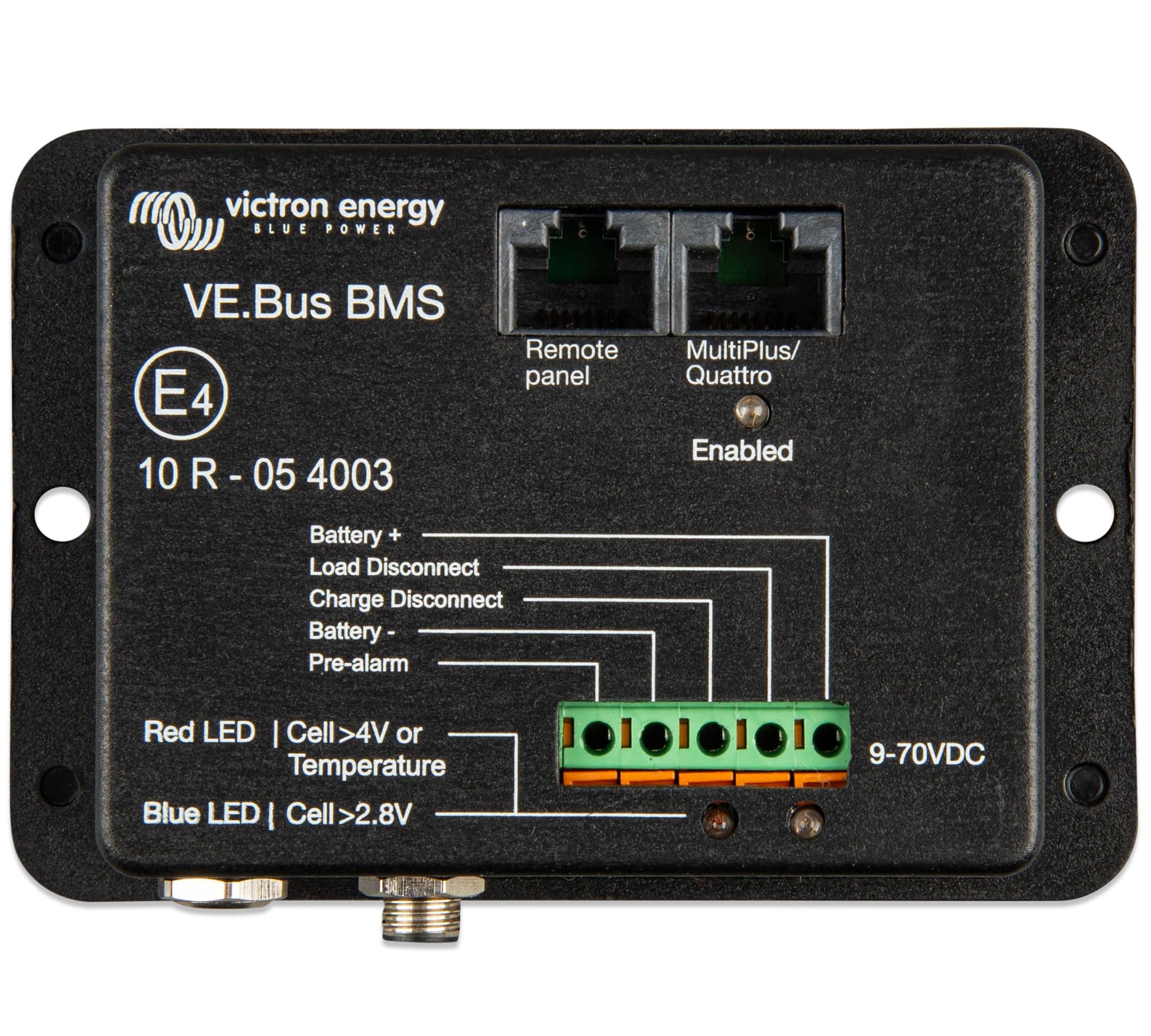

Victron Energy VE.Bus BMS Battery Management System

Brand: Victron Energy

Features:

• Victron Energy VE.Bus BMS Battery Management System protects 12V, 24V and 48V systems
• The operating voltage range of the BMS: 9 to 70V DC

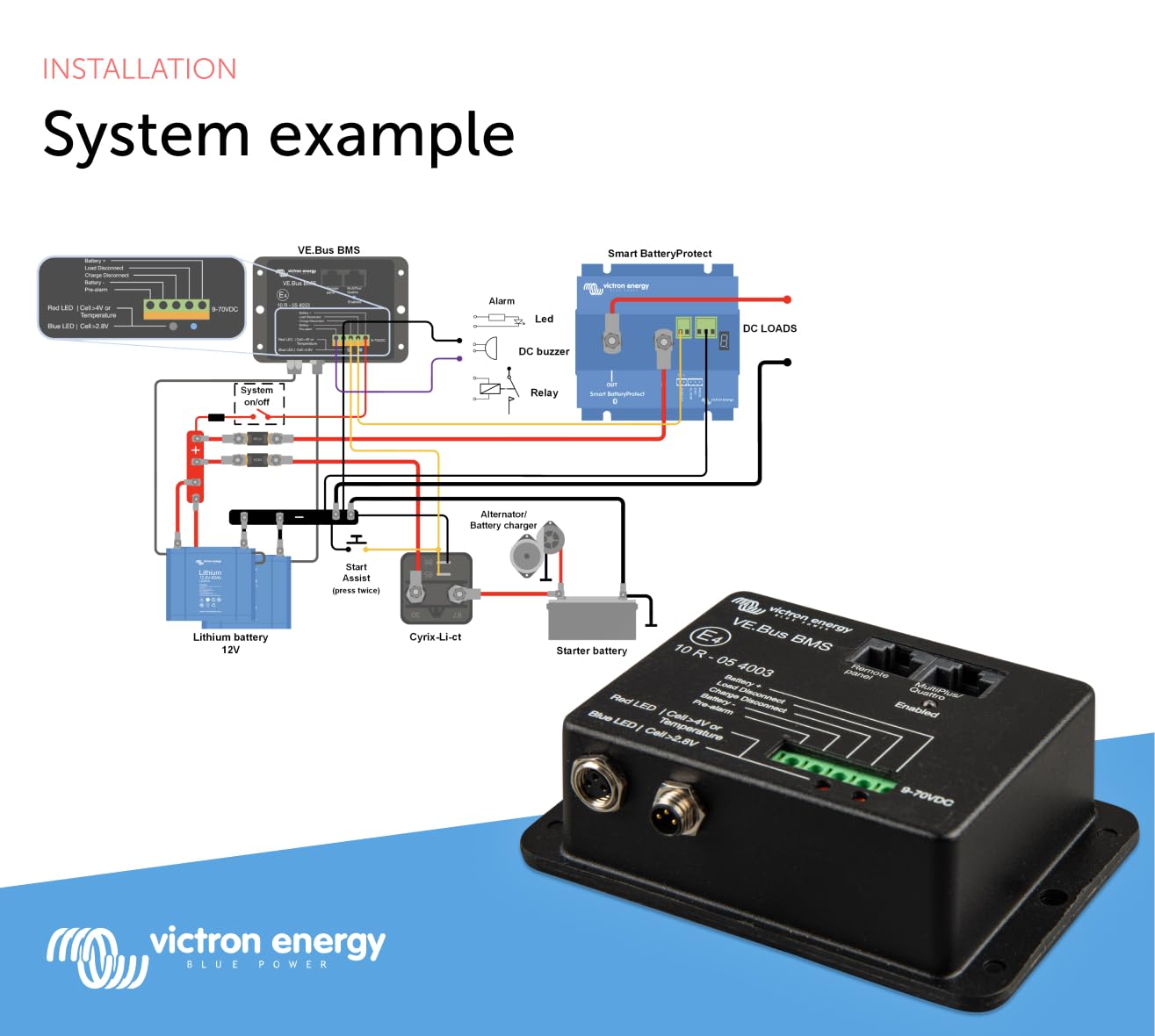

• The VE.Bus BMS connects to a Victron Energy MultiPlus, Victron Energy Quattro or Victron Energy Phoenix inverter with a standard RJ45 UTP cable
• The BMS will shut down or disconnect loads in case of imminent cell under voltage and reduce charge current in case of imminent cell overvoltage or over temperature
• The BMS will also shut down or disconnect battery chargers in case of imminent cell overvoltage or over temperature

Binding: Apparel

model number: BMS300200000

Part Number: BMS300200000

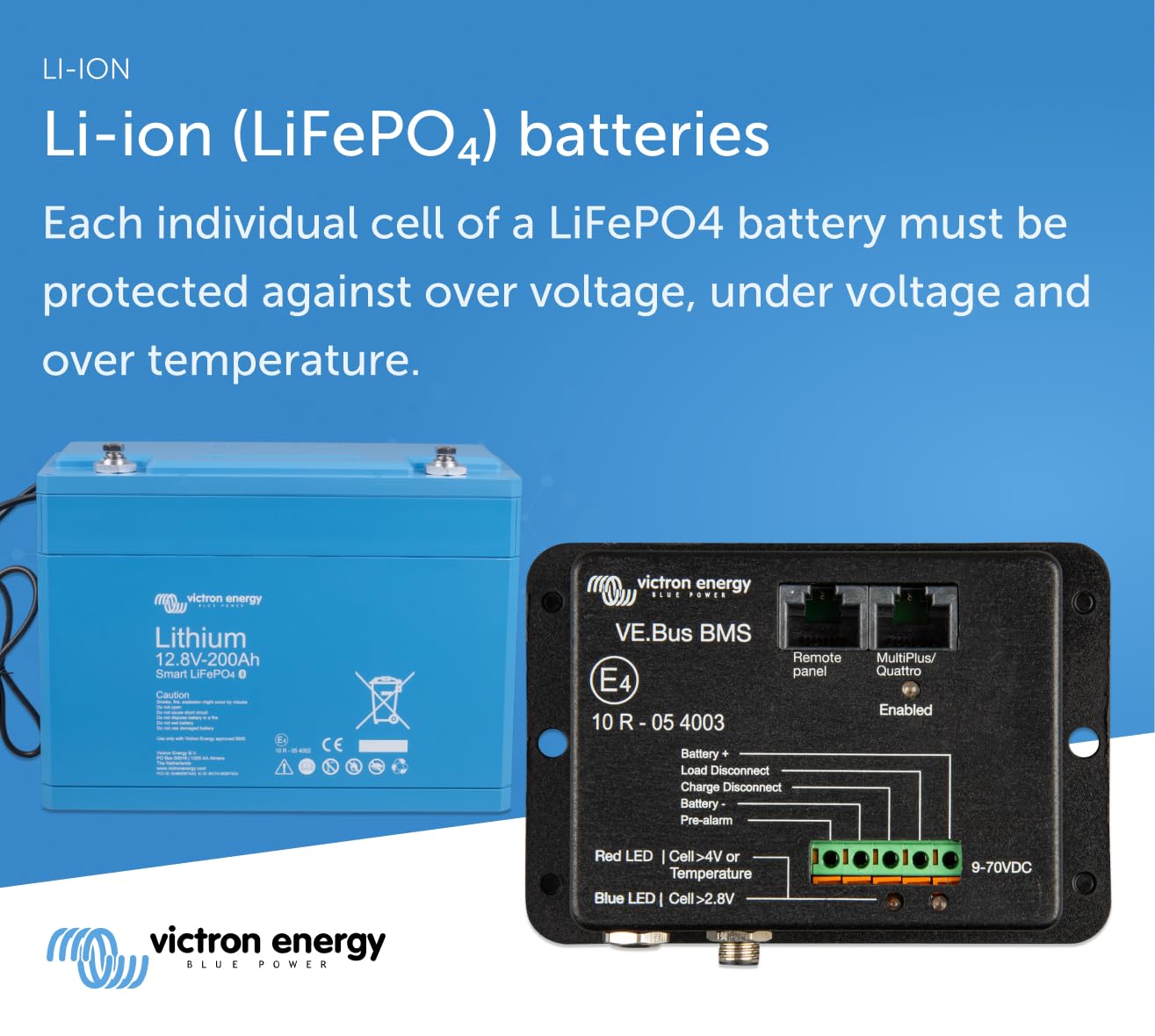

Details: The VE.Bus BMS protects each individual cell of a Victron lithium-iron-phosphate (LiFePO4 or LFP) battery. Each individual cell of a LiFePO4 battery must be protected against overvoltage, undervoltage and overtemperature. Victron LiFePO4 batteries have integrated Balancing, Temperature and Voltage control (acronym: BTV) and connect to the VE.Bus BMS with two M8 circular connector cord sets. The BTVs of several batteries can be daisy-chained. Please see our LiFePO4 battery documentation for details. The BMS will: Shut down or disconnect loads in case of imminent cell under voltage. Reduce the charge current in the event of imminent cell overvoltage or overtemperature. Shut down or disconnect battery chargers in case of imminent cell overvoltage or overtemperature.

EAN: 8719076021032

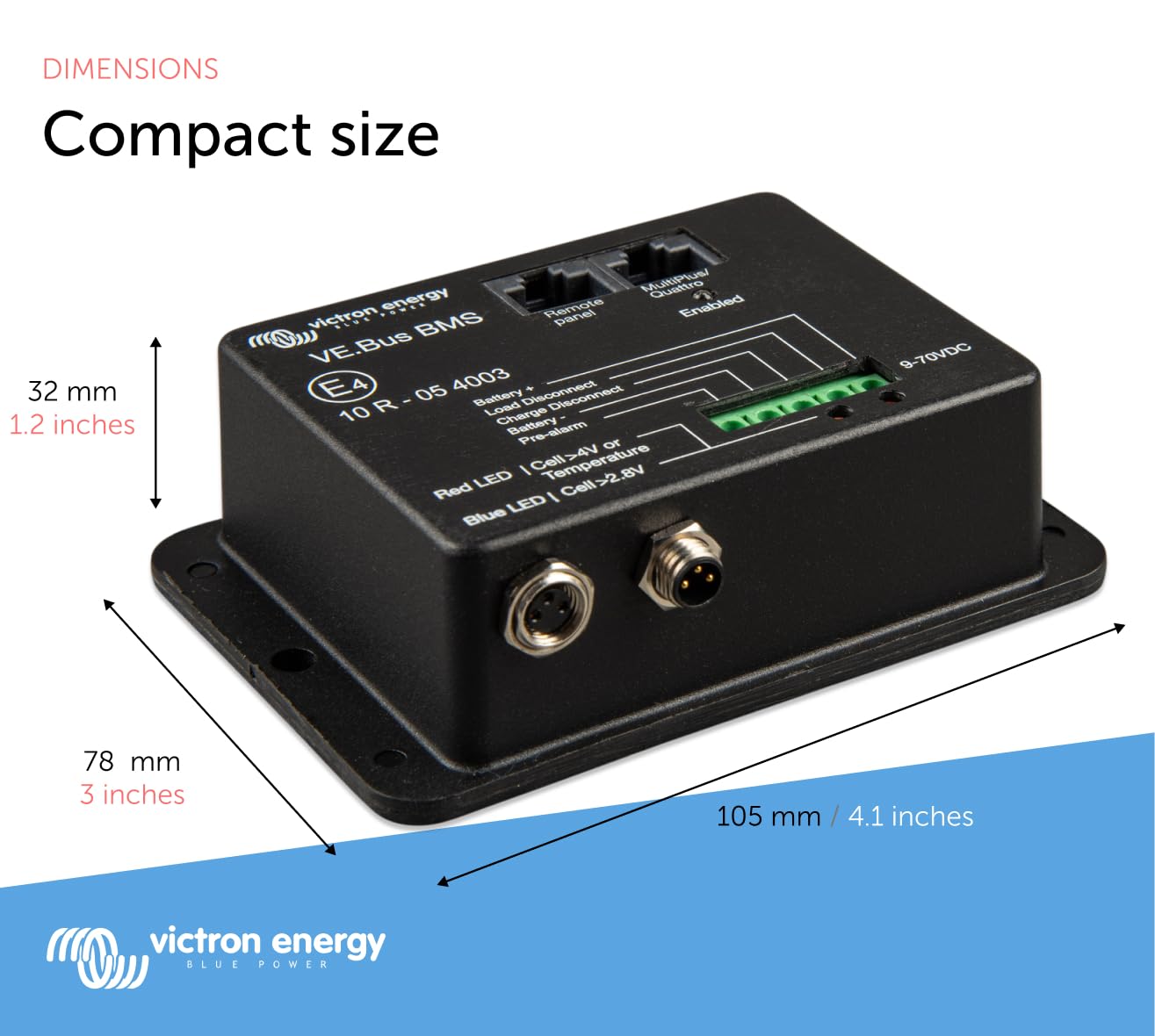

Package Dimensions: 8.6 x 5.3 x 2.4 inches
